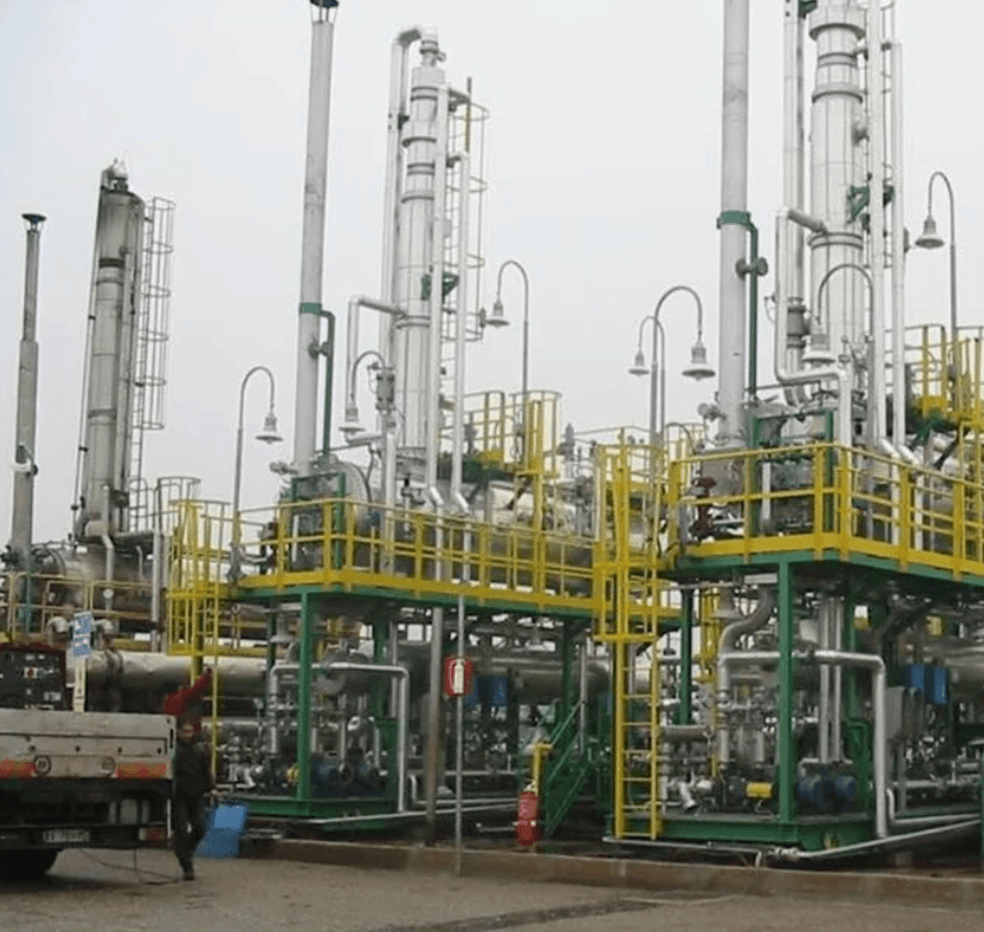

C.LE GAS SABBIONCELLO – N.2 GLYCOL REGENERATION SKID

C.LE GAS SABBIONCELLO – IT SERVICE: EPC CONTRACT FOR N. 2 GLYCOL REGENERATION SKIDS 200 m³/d ENGINEERING SERVICES OFFERED: Process Engineering Structural Engineering Piping & Mechanical Engineering Electrical / Instrumentation Engineering EQUIPMENT: Process Data: Maximum wet glycol treatment capacity: 200 m³/day. Plant flexibility: 20–110% of maximum capacity. Percentage of water in incoming wet glycol: 9 wt%. Concentration of regenerated glycol: 99.5 wt% using stripping gas. Expected stripping gas consumption: 33 kg/h. Operating conditions of incoming wet glycol: Temperature: 30 °C Pressure: 6 bar a. Below is the list of equipment included in the glycol regeneration unit: Glycol Heater FR-101 Glycol Regeneration Column VE-101 Stripping Column VE-102 Regenerated Glycol Accumulators VB-101 Waste/Regenerated Glycol Heat Exchanger HA-102 Main Condenser HV-101 Air Cooling for Glycol HC-101 Waste Glycol Filter CL-101A/B Coalescing Filter CN-101 Regenerated Glycol Filter CL-102A/B Glycol Transfer Pumps PA-101A/B
